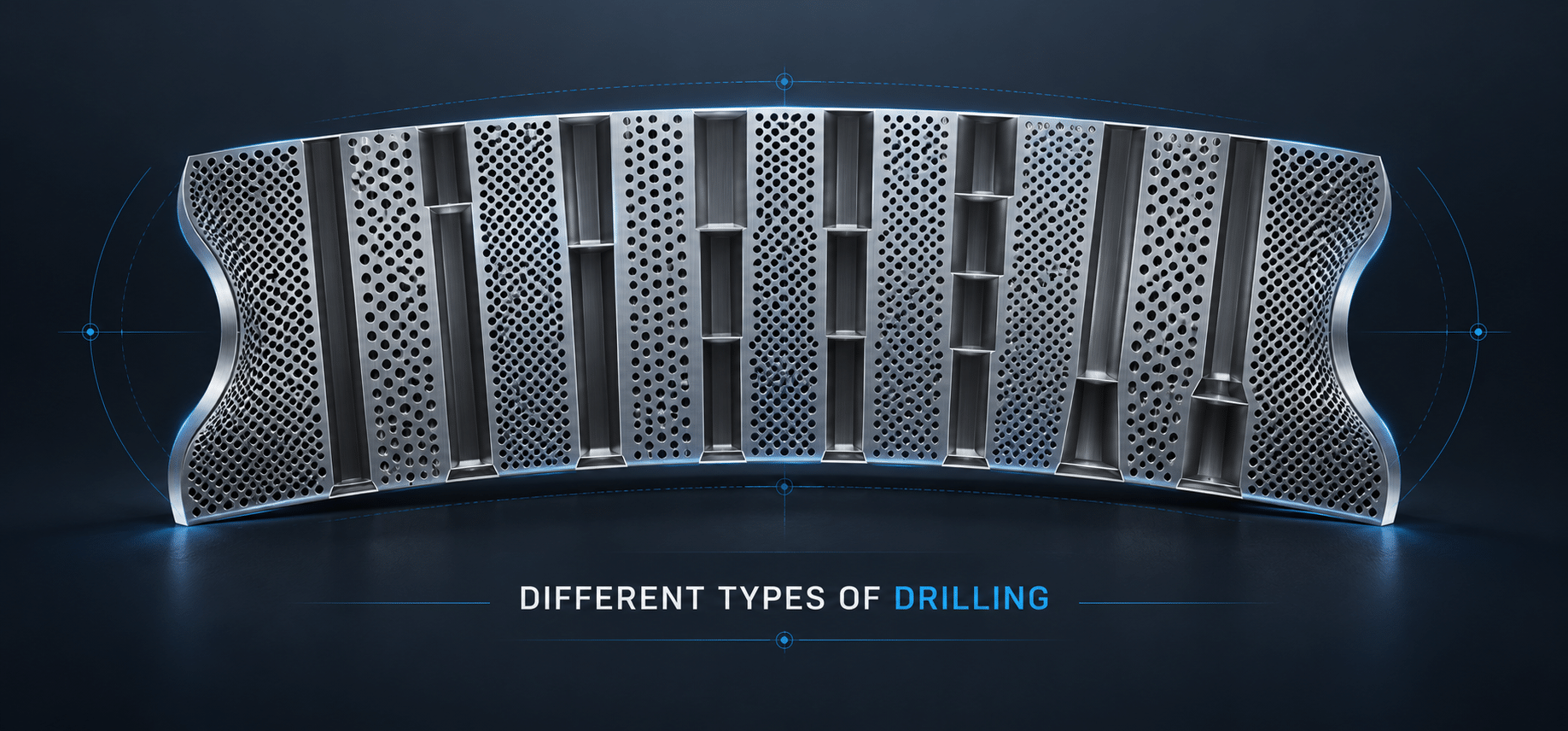

Precision Hole Geometry
Accurate hole pattern and controlled geometry designed around the intended pelleting application.
RING DIE
ORION ENGINEERING WORKS / PRODUCT DETAIL
Ring Shaped Dies.
Precision-engineered ring dies for pellet mill applications where hole geometry, compression control, wear performance and repeatable production are critical. Orion Engineering Works manufactures and exports ring shaped dies for industrial, OEM, distributor and bulk-order requirements, with customization based on machine, material and production parameters.
MANUFACTURER
EXPORTER
BULK ORDER SUPPLY
CUSTOMIZED MANUFACTURING
CORE PELLETING COMPONENT
CLICK IMAGE TO ENLARGE
PRODUCTRing Shaped Dies
SUPPLYIndia & Export
01
PRODUCT OVERVIEW
A critical component in pellet production.
Pellet mills convert conditioned raw materials such as feed, biomass, wood-based material and selected industrial feedstock into uniform pellets. At the heart of the pelleting process, the ring shaped die works together with the rollers to compress material and form pellets through precisely engineered holes.
Orion Engineering Works manufactures ring shaped dies with a focus on accurate hole geometry, controlled compression, dimensional consistency and application-specific customization. The objective is dependable pellet formation, repeatable output and a component configuration matched to the customer's machine and production requirement.
Application-Based Compression
Die configuration can be tailored around raw material, pellet size, production target and machine conditions.
Wear-Focused Manufacturing
Manufacturing approach prioritizes material performance, dimensional stability and dependable operating life.
Bulk & Customized Supply
Suitable for industrial buyers, OEMs, distributors and recurring production requirements requiring consistent specifications.
CLICK PRODUCT IMAGE TO VIEW LARGE
02
ENGINEERING DETAIL
Designed around your machine & material.
Pellet production requirements vary by equipment, feed formulation, biomass, mineral, wood or other process material. Orion can manufacture ring dies against technical inputs supplied by the buyer so critical parameters can be aligned with the intended application.
Machine / Model Reference
Manufacturing can be reviewed against the machine, pellet mill model or customer drawing/reference.
Pellet & Hole Requirement
Hole diameter, geometry and working pattern are considered according to the required pellet output.
Raw Material Condition
Material type, abrasiveness, density and production conditions help define the suitable configuration.
Custom Production Requirement
Bulk quantities and repeat orders can be planned around agreed technical specifications.
03
APPLICATIONS
Built for demanding pelleting environments.
Ring dies can be used across different pelleting and material-processing applications. Final die design should be selected according to the actual machine and process requirement.
01
FEED PELLETING
Animal Feed
For feed pelleting systems requiring repeatable pellet formation, controlled compression and dependable production consistency.
02
BIOMASS PELLETING
Biomass & Wood
For biomass and wood-based pellet production where raw-material behavior, density and compression requirements may vary.
03
INDUSTRIAL PROCESSING
Mineral Processing
For selected mineral and industrial material applications where controlled die geometry and application-specific configuration are required.
04
RESOURCE RECOVERY
Waste & Recycling
For pelletizing selected processed waste and recycling materials, subject to equipment compatibility and the actual process requirement.
04
PRODUCT SPECIFICATIONS
Ring die information at a glance.
The following ranges reflect the product information supplied for Orion ring shaped dies. Final dimensions, capacity suitability and die configuration should be confirmed against the actual pellet mill, material and production requirement.
INTRODUCTION TO PELLET MILLS & RING SHAPED DIES
Engineered to shape material into consistent pellets.
The ring shaped die is a critical pellet mill component responsible for defining pellet form and size. As the rollers apply pressure, conditioned material is forced through the die holes. Hole diameter, drilling pattern, working length and the overall die design can influence pellet quality, throughput and operating performance.
Orion supports custom manufacturing for buyers who need ring dies matched to machine references, drawings, sample dimensions, pellet size targets or specific process conditions.
ORION RING SHAPED DIES
INDICATIVE PRODUCT RANGE
SpecificationRange / Information
Pellet Size2.5 mm to 12 mm
Production Capacity2 Tons/Hour to 60 Tons/Hour*
CustomizationAvailable upon customer requirement
Order TypeBulk / OEM / Repeat Supply
Quality FocusPrecision & final inspection focused
*Actual output depends on pellet mill model, raw material, formulation, operating conditions and die configuration.
05
PRODUCT BENEFITS
Performance designed around real pelleting demands.
A ring die is a working production component, not just a machined part. Orion focuses on the factors that matter in operation: pellet formation, dimensional consistency, controlled compression and application suitability.
01
OUTPUT
Enhanced
Productivity
A correctly specified die supports efficient pellet formation by matching hole geometry and die configuration to the mill, material and production requirement.
Application-matched configuration
02
CONSISTENCY
Consistent
Pellet Quality
Precision-focused drilling and dimensional control help support repeatable pellet size, stable formation and dependable process performance from batch to batch.
Controlled drilling & geometry
03
DURABILITY
Long-Lasting
Performance
Material selection, machining accuracy and controlled manufacturing are directed toward dependable service under demanding pelleting and production conditions.
Built for demanding operation
04
ENGINEERING
Application
Expertise
Orion reviews machine details, material, pellet target and production requirement to support a more suitable die configuration instead of a generic one-size solution.
Requirement-led customization
MANUFACTURING APPROACH
Precision-focused
ORDER SUPPORT
Bulk & customized
SUPPLY
Domestic & export
06
WHY ORION ENGINEERING WORKS
Manufacturer, exporter & custom supply partner.
Orion Engineering Works supplies ring shaped dies for pellet mill requirements with emphasis on precision engineering, customization, repeat-order consistency and buyer support. Requirements can be reviewed for domestic customers, export enquiries, distributors, OEMs and bulk industrial buyers.
Customers can share machine details, drawings, dimensions, pellet size requirements, process material, quantity and destination so the technical and commercial requirement can be assessed more accurately before manufacturing.
CHANNEL SALES PARTNER
Koncept Solution
07
CUSTOM MANUFACTURING
Made to match the technical requirement.
Orion Engineering Works supports customized ring die manufacturing for customers who need more than an off-the-shelf component. Share available drawings, old sample details, machine model, dimensions, material and operating requirement for technical review.
INFORMATION HELPFUL FOR CUSTOM ORDERS
- 01Machine make / model or compatible reference
- 02Required dimensions or drawing
- 03Hole / pellet size requirement
- 04Raw material / process application
- 05Required quantity / bulk-order volume
- 06Destination country for export requirement
08
MANUFACTURING APPROACH
Precision through every manufacturing stage.
A controlled manufacturing sequence helps maintain dimensional accuracy, drilling quality and material performance before the component is cleared for supply.
01
Material Selection
Raw material is selected in line with the intended component and operating requirement.
02
Precision Turning
Machining establishes the required form, dimensions and critical surfaces.
03
Controlled Drilling
Hole pattern and geometry are produced according to the defined technical requirement.
04
Heat Treatment
Heat treatment is applied as required to support material performance and wear behavior.
05
Final Inspection
Key dimensions and workmanship are reviewed before dispatch.
09
MANUFACTURER & EXPORTER
Professional supply for bulk & export orders.
Orion Engineering Works serves industrial buyers who require dependable production supply, repeat specifications and custom manufacturing support. Bulk-order requirements can be discussed according to quantity, drawing, machine compatibility, packaging and destination.
Discuss Bulk RequirementManufacturer
Direct manufacturing support for ring shaped die requirements.
Exporter
Supply support for international industrial and distributor enquiries.
Bulk Orders
Suitable for planned quantities, recurring demand and commercial supply.
Customization
Manufacturing can be reviewed against customer-provided technical inputs.
10
PRODUCT FAQ
Frequently asked questions.
Quick information for buyers evaluating a ring shaped die requirement.
Can Orion manufacture ring dies as per our machine or drawing?+
Yes. Custom manufacturing requirements can be reviewed using the available machine reference, drawing, dimensions, sample details and process information supplied by the buyer.
Do you accept bulk orders?+
Yes. Orion supports bulk-order enquiries and repeat supply requirements subject to agreed specifications, quantity and production planning.
Do you supply outside India?+
Orion positions its ring die supply for both domestic and export enquiries. Export details can be discussed based on destination, quantity and commercial terms.
What information should we send for a quotation?+
Share machine make/model, dimensions or drawing, pellet or hole requirement, application/raw material, quantity and delivery destination. More complete technical inputs allow a more accurate review.
RING SHAPED DIES / TECHNICAL ENQUIRY
Have a specific ring die requirement?
Share your machine, drawing, application and required quantity with Orion Engineering Works for review.
