Orion Engineering Works focuses on precision die manufacturing with a process-led approach covering raw material preparation, turning, drilling, counterboring, heat treatment, rectification and final quality control.
Precision Machining
Controlled Drilling
Quality & Traceability
MANUFACTURING FOUNDATION

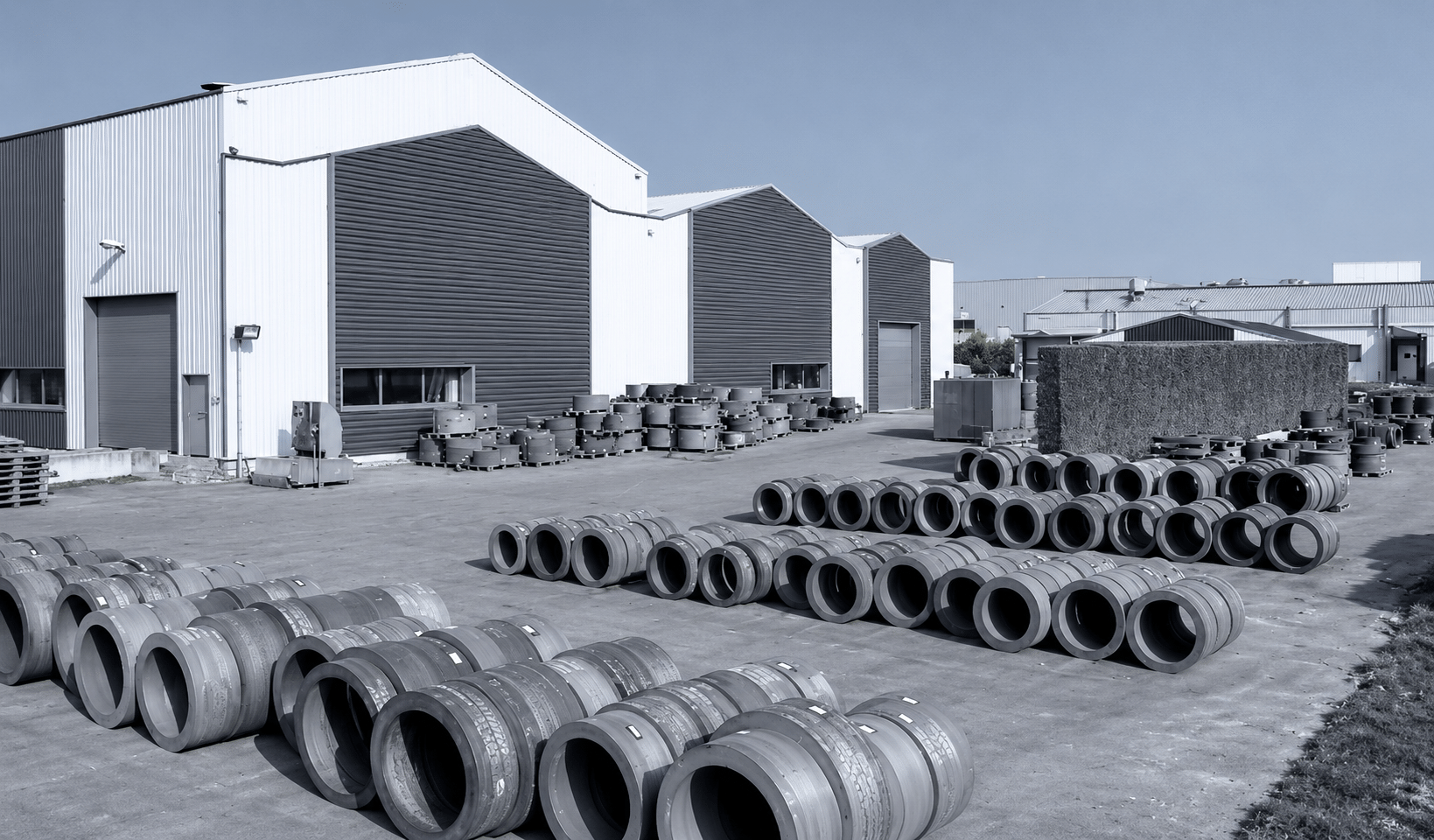

Raw Material Intake
FOCUSDie Manufacturing
PROCESSPrecision Controlled
PRODUCTSRing & Flat Dies
SUPPLYBulk & Export
01
MANUFACTURING PHILOSOPHY
Precision manufacturing built around application needs.
Orion Engineering Works is dedicated to manufacturing dies and related pellet mill components with emphasis on controlled machining, application-specific drilling, material performance and consistent quality.
Production requirements can vary with feed, biomass, wood, minerals, recycling materials and other demanding applications. For this reason, die geometry, drilling diameter, compression ratio and thickness are treated as application-led parameters.
Controlled Processing
Turning, drilling, counterboring, heat treatment and finishing are organized as controlled process stages.
Inspection & Traceability
Manufactured components are checked through the process with focus on dimensional accuracy and traceability.
02
MANUFACTURING FLOW
From raw material to finished die.
Each stage contributes to the final geometry, strength, wear performance and repeatability of the finished die. The exact sequence may vary depending on product type.
01Raw MaterialFORGED / PREPARED INPUT
02TurningDIMENSIONAL FORM
03DrillingCONTROLLED HOLE GEOMETRY
04CounterboringFLOW & DISCHARGE
05Heat TreatmentHARDNESS & PERFORMANCE
06RectificationFINISHING & ACCURACY
07Quality ControlFINAL INSPECTION
01
03
MANUFACTURING FOUNDATION
RAW MATERIAL
Quality starts with the right material.
Die manufacturing begins with controlled raw material selection. For ring-shaped dies, forged steel ring blanks provide the starting form for subsequent machining operations.
Material is reviewed before manufacturing so that machining, drilling and heat-treatment stages begin from a consistent and suitable base.
01Material suitability review
02Dimensional inspection
03Stock planning for lead-time control
04
PRECISION FORMING
TURNING
Shaping the die to its final form.
The turning stage establishes the principal geometry of the die and prepares the component for later drilling and finishing operations.
Precision-controlled machining helps maintain dimensional consistency and supports efficient production of different die sizes and configurations.
01Controlled machining
02Dimensional consistency
03Prepared for drilling stage
02
05
DRILLING TECHNOLOGY
Precision drilling for ring and flat dies.
Drilling defines the working hole pattern of the die. Hole diameter, spacing, surface finish, compression length and relief geometry are adapted to the intended application.
RING-SHAPED DIES
Ring Die Drilling
Controlled drilling produces the working hole pattern required for pellet formation. Precision tooling supports smooth hole surfaces and repeatable geometry.
01Hole Geometry
02Surface Finish
03Application-Specific Compression
FLAT DIES
Flat Die Drilling
Flat-die drilling follows the same precision principle while adapting the pattern and geometry to the flat working surface and the intended raw material.
01Custom Pattern Layout
02Controlled Drilling Depth
03Abrasive-Product Suitability
04
06
CONTROLLED MATERIAL DISCHARGE
COUNTERBORING
Optimizing pellet flow through the die.
Counterboring helps define the discharge side of the die hole and can influence material release, effective compression length and overall die behavior.
Depending on the requirement, counterboring can be configured in different forms, including stepped or conical/cylindrical geometries.
01Controlled discharge geometry
02Compression-length tuning
03Application-specific relief design
07
MATERIAL PERFORMANCE
HEAT TREATMENT
Hardness balanced with resilience.
Heat treatment is used to improve wear resistance and mechanical performance while maintaining the resilience required for demanding pelleting conditions.
The treatment cycle is selected according to the component, material and required performance characteristics before the die proceeds to finishing and inspection.
01Wear resistance
02Controlled hardness
03Core performance
05
06
08
FINAL GEOMETRY CONTROL
RECTIFICATION & FINISHING
Finishing for accuracy and consistency.
Rectification and finishing refine the component after earlier machining and heat-treatment stages. This is where critical surfaces and dimensional relationships are brought into final controlled condition.
The objective is a finished die with repeatable geometry, clean working surfaces and dimensional consistency ready for final inspection.
01Dimensional refinement
02Surface finishing
03Pre-inspection preparation
09
QUALITY CONTROL
Quality and traceability at every critical stage.
Inspection is integrated throughout the manufacturing process, with particular attention after machining, drilling, heat treatment and finishing stages.
Final component identification and documentation can include relevant manufacturing and dimensional references to support traceability and repeat-order consistency.
01Dimensional verification
02Hole / geometry inspection
03Material & process traceability
04Final pre-dispatch check
QUALITY OBJECTIVE
Repeatable manufacturing for repeatable performance.
Orion's manufacturing approach is designed around consistency — from incoming material through the final inspection stage.
